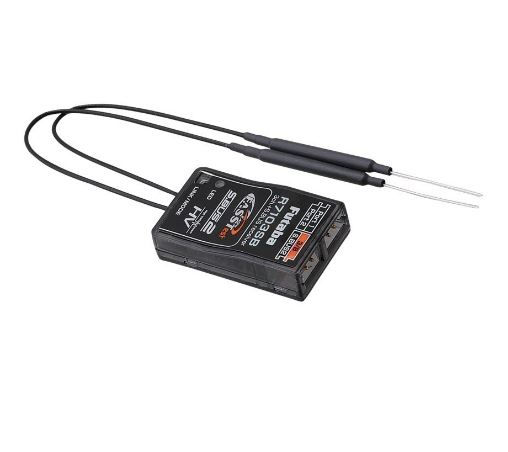

Futuba R7103SB 2.4G 3 Channel FASSTest Receiver

Futuba R7103SB 2.4G 3 Channel FASSTest Receiver


The Futuba R7103SB 3 channel HV S.BUS2 FAASTest is compatible with all Futuba FAASTest 2.4Ghz transmitters.  The R7103SB is the latest version of the extremely popular R7008SB receiver. It has been specifically designed for the 18 channel Futuba transmitters.

The R7103SB receiver features bi-directional communication with a FAASTest  Futuba transmitter using the S.BUS2 port.

The Flexibility of the R7103SB is unequaled. The R7103SB allows you to select from 11 modes of operation from the 4 ports.


If R7103SB does NOT use S.BUS/S.BUS2 system, it can perform only opertion of 3 channels. However if S.BUS/S.BUS2 system IS used, use of the maximum channel of a transmitter can be performed. You have to use S.BUS/S.BUS2 Servos in order to use the S.BUS/S.BUS2 system.


The electronics are uncompromised so the R7103SB has full telemetry features and full range transmission.  Its slim and compact format makes it ideal for almost any application, whilst the dual coaxial aerials provide solid stable reception with their length allowing them to be positioned at 90 degree from each other to give the maximum possible range.

  • Tech Specs

    Use: For aircraft models

    Spec: 2.4GHz FASSTest

    Channels: 3 channels conventional system

    S.Bus & S.Bus 2 port for telemetry

    Size: 22.5mm x 37.4mm x 9.3mm

    Weight: 8.3grams

    Operating Voltage: DC 3.7V~7.4V (3.5-8.4V range)

    Channels: 3conventional system or S.BUS
